Start here

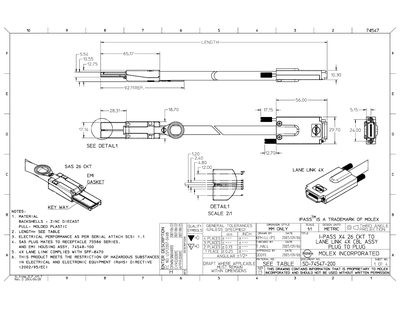

Molex SD-74547-200 Selection Guide
This selection guide describes the physical and electrical characteristics of the Molex SD-74547-200 series connectors. It includes length ranges, material specifications, keying identifiers and routing options for both SAS and SATA 4‑lane link assemblies.
The document also lists compliance information, such as RoHS restriction compliance, and provides part numbers for various cable configurations, helping designers choose the correct component for their applications.
Molex SD-74547-200 specifications
| Backshell material | Zinc diecast |
|---|---|
| Keying identifier | Universal key |
| RoHS compliance | Meets 2002/95/EC restriction |
| Connector type (SAS) | X4 SAS to 4X lane link |
| Connector type (SATA) | x4 SATA to 4X lane link |
All Molex SD-74547-200 documents by type
Questions answered in these manuals
What keying identifier is used for the SD-74547-200 series?
The series uses a universal key for keying.
What material are the backshells made of?
The backshells are made of zinc diecast.
What does the keying identifier indicate?
The keying identifier column shows the mechanical keying code for each part number to ensure correct mating.
Are dimensions given in metric units?
Yes, all dimensions are shown in millimetres, with a note that measurements are metric only.
