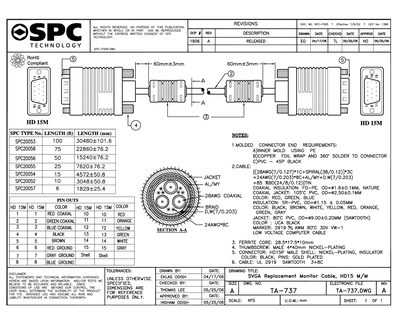

This guide provides technical information for selecting the SPC TA-737 cable. It lists available cable lengths, connector end requirements, and construction details such as insulation material and jacket specifications.
The document also includes color‑coding for the HD15M cable, ferrite core dimensions, and pin‑out configurations, helping users choose the correct cable for their application.
| Length (ft) | 100 |
|---|---|
| Length (mm) | 30480+101.6 |
| Coaxial Insulation | FO‑PE, OD=1.640.1 mm |
| Coaxial Jacket Material | PVC, 105 °C |
| Cable Color Options | Black, Brown, White, Yellow, Red, Orange |
The guide lists a length of 100 ft (30480 mm + 101.6 mm).
Available braid colors are black, brown, white, yellow, red, and orange.
The coaxial insulation is made of FO‑PE with an outer diameter of 1.640 mm.
The coaxial jacket is PVC rated for 105 °C.
