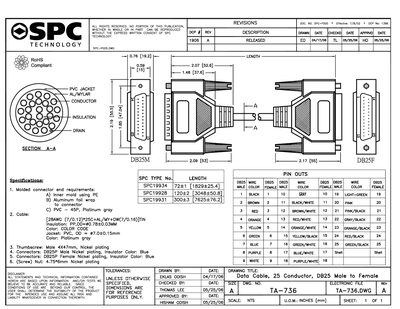

This document provides the detailed specifications for the SPC TA-736 data cable, a 25‑conductor cable with DB25 male and female connectors. It includes revision history, connector pin‑outs, and material requirements.
Key construction details are listed, such as a 28 AWG copper conductors, PP insulation, PVC jacket, and nickel‑plated connectors. Color codes for each wire and dimensions for the molded connector ends are also provided.
| Connector type | DB25 male to DB25 female |
|---|---|
| Number of conductors | 25 |
| Conductor gauge | 28 AWG |
| Insulation material | PP |
| Jacket material | PVC |
| Connector plating | Nickel |
The cable contains 25 conductors.
The conductors are 28 AWG.
