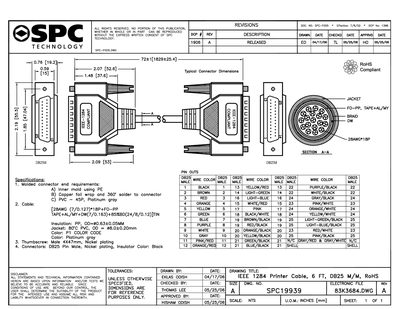

This handbook provides the technical specifications for the SPC19939 printer cable, including connector types, pin assignments, cable construction, and material compliance. It lists the DB25 M/M connector details, color‑coded wiring, and mechanical dimensions.
The document also contains revision history, tolerance notes, and a disclaimer about the suitability of the product for intended use. All data are presented in inches with metric equivalents where applicable.
| Cable length | 6 FT |
|---|---|
| Connector type | DB25 M/M |
| RoHS compliance | Yes |
| Cable gauge | 28 AWG |
| Number of conductors | 18 |
| Thumbscrew size | 4×47 mm, nickel plated |
The cable is 6 feet long.
The cable contains 18 conductors.
Yes, the cable is RoHS compliant.
The cable uses a DB25 male‑to‑male connector.
