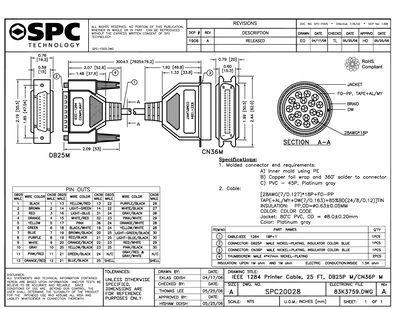

This guide provides the technical specifications for the SPC20028 connector, including molded connector end requirements, cable construction, and wire‑color coding. It also lists the pin‑out arrangement for DB25 and CN36 connectors.
The document includes dimensional tolerances, material compliance (RoHS), and disclaimer information for users to assess suitability for their applications.
| Jacket material | 80°C PVC |
|---|---|
| Connector type | DB25P male, nickel‑plating |
| Insulation material | PP |
| Pin count | 25 pins (DB25) |
The jacket is made of 80°C PVC.
