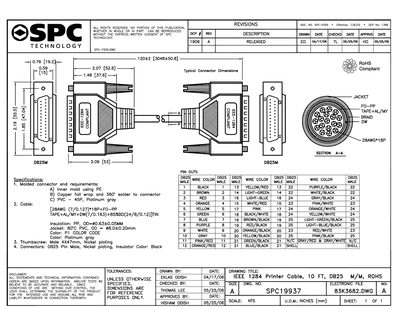

This guide provides technical information for the SPC19937 IEEE 1284 printer cable, including connector dimensions, wire colors, and material specifications. It is intended to help users select the appropriate cable for their printer applications.
Key data include the DB25 male connector type, 10‑ft cable length, RoHS compliance, 80 °C PVC jacket, and 28 AWG conductors. Detailed pin‑out tables and color codes are provided for proper wiring and installation.
| Connector type | DB25 male |
|---|---|
| Cable length | 10 FT |
| Jacket temperature rating | 80 °C PVC |
| Wire gauge | 28 AWG |
It uses a DB25 male connector.
The cable is 10 feet long.
The jacket is rated for 80 °C.
