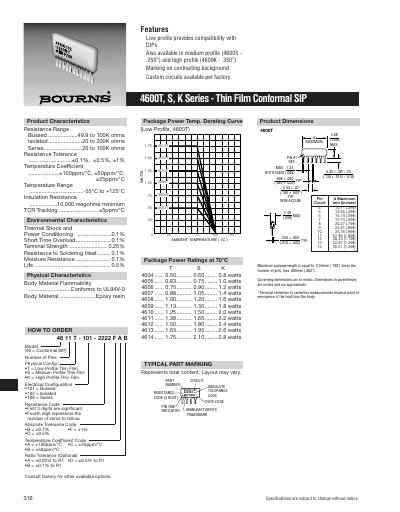

4600T, S, K series - thin film conformal SIP specifications are subject to change without notice. Product characteristics Resistance range Bussed .49.9 to 100K ohms Isolated..20 to 200K ohms Series.20 to 100K ohms Resistance tolerance ..±0.1%, ±0.5%, ±1% Temperature coefficient ..±100ppm/°C, ±50ppm/°C, ±25ppm/°C Temperature range .-55°C to +125°C Insulation resistance ..10,000 megohms minimum TCR Tracking ..±5ppm/°C Environmental characteristics Thermal shock and power conditioning ..0.1% Short time overload.. 0.1% Terminal strength .. 0.25% Resistance to soldering heat .. 0.1% Moisture resistance .. 0.1% Life .. 0.5% Physical characteristics Body material flammability .Conforms to UL94V-0 Body material..Epoxy resin
The document provides the product characteristics of Bourns fully‑enclosed power transformers, including resistance ranges, tolerance codes, temperature coefficients and environmental limits. It also details ordering information, package dimensions and available configurations such as bussed, isolated and series circuits.
Additional sections describe the physical construction (epoxy resin, UL94V‑0 flammability), power‑rating curves at various ambient temperatures, and typical part markings. The datasheet concludes with dimensional tables for the 4600 series family and notes that specifications are subject to change without notice.
| Resistance Range | 49.9 to 100 kΩ |
|---|---|
| Insulation Resistance (minimum) | 0.000 MΩ |
| Body Material | Epoxy resin (UL94V‑0) |
The resistance range is 49.9 kΩ to 100 kΩ.
The body is made of epoxy resin and meets UL94V‑0 flammability standards.
