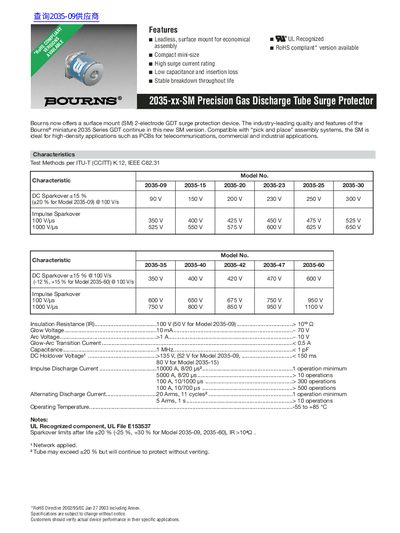

This document describes the features and characteristics of the 2035-xx-SM Precision Gas Discharge Tube Surge Protector, including leadless surface mount for economical assembly, compact mini-size, high surge current rating, low capacitance and insertion loss, stable breakdown throughout life, UL Recognized, and RoHS compliant* version available.
The 2035‑xx‑SM series is a surface‑mount, two‑electrode gas discharge tube (GDT) designed for high‑density PCB applications in telecommunications, commercial and industrial equipment. It is compatible with pick‑and‑place assembly and provides stable breakdown voltage throughout its life.
Key specifications include an operating temperature range of 55 °C to 85 °C, impulse spark‑over voltages ranging from 350 V to 1 100 V depending on model, and packaging options of 100 pieces per bulk bag or 1 500 pieces per optional reel. The device is UL‑recognized (File E153537) and available in a lead‑free, RoHS‑compliant version.
| Operating Temperature Range | 55 °C to 85 °C |
|---|---|
| Maximum Number of Operations | 500 operations |
| Packaging – Bulk | 100 pieces per bag |
| Packaging – Reelpack (optional) | 1 500 pieces per reel |
| UL Recognition | UL File E153537 |
It ships in a standard bulk pack of 100 pieces per bag, with an optional reelpack containing 1 500 pieces per reel.
The device operates from 55 °C up to 85 °C.
Yes, it is UL recognized under file E153537.
