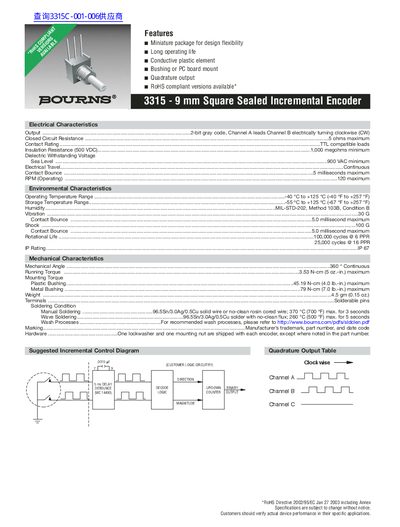

The 3315 - 9 mm Square Sealed Incremental Encoder features: miniature package for design flexibility; long operating life; conductive plastic element; bushing or PC board mount; quadrature output; RoHS compliant versions available.
The 3315 series is a miniature, sealed incremental encoder with a 9 mm square form factor. It offers a quadrature output, conductive plastic element, and options for plastic or metal bushing mounting. The device is RoHS compliant and includes a lock washer and mounting nut.
Technical data include electrical characteristics such as 5 Ω maximum closed‑circuit resistance, 1 MΩ minimum insulation resistance, and an IP67 environmental rating. Mechanical specifications list a continuous torque of 3.53 N·cm, a weight of 4.5 g, and a maximum contact bounce of 5 ms. Detailed dimensions for various terminal and shaft configurations are provided.
| Output type | Quadrature |
|---|---|
| Closed circuit resistance | 5 Ω maximum |
| Operating temperature range | -40 °C to +125 °C |
| IP rating | IP67 |
| Continuous torque | 3.53 N·cm (5 oz·in.) maximum |
| Weight | 4.5 g (0.15 oz) |
| Maximum contact bounce | 5 ms |
It provides a quadrature output.
The encoder operates from –40 °C up to +125 °C.
The device has an IP67 rating.
The maximum closed‑circuit resistance is 5 Ω.
