This document describes the features and characteristics of the IRF150 HEXFET transistors, including low on-state resistance, high transconductance, superior reverse energy, and diode recovery speed. These transistors are suitable for applications such as switching power supplies and motor control.

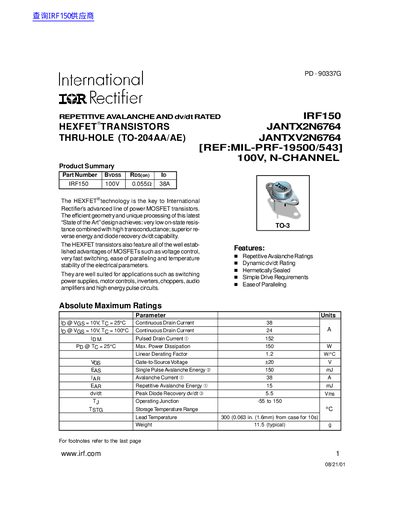

The IRF150 HEXFET transistor datasheet provides comprehensive electrical specifications, absolute maximum ratings, and thermal characteristics for the device. It includes parameters such as breakdown voltage, on‑state resistance, drain current limits, and gate charge information.
The document also presents typical performance curves, switching time test results, and recommended operating conditions, making it useful for designers of switching power supplies, motor controls, inverters, and other high‑power applications.
| Drain-to-Source Breakdown Voltage (BVDSS) | 100 V |
|---|---|
| Maximum Power Dissipation | 150 W |
| Gate Threshold Voltage (VGS(th)) | 2.0 – 4.0 V |
The drain‑to‑source breakdown voltage (BVDSS) of the IRF150 is rated at 100 V.
The device can dissipate up to 150 W of power under the specified conditions.
