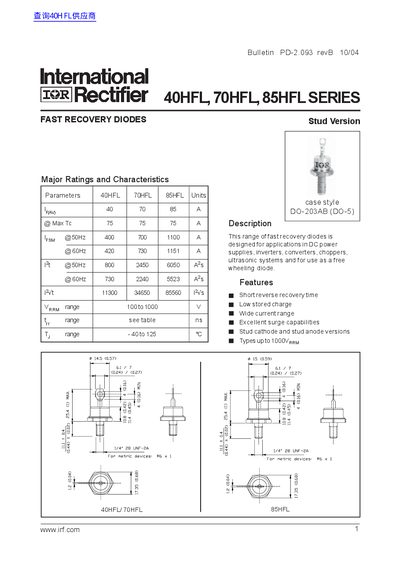

The 40HFL, 70HFL, 85HFL series of fast recovery diodes have short reverse recovery time, low stored charge, wide current range and excellent surge capabilities
The handbook provides electrical, thermal and mechanical specifications for the 40HFL, 70HFL and 85HFL fast‑recovery diode series. It includes ratings, characteristic curves, and application guidelines for use in DC power supplies, inverters and chopper circuits.
Key data such as maximum forward current, reverse voltage rating, operating temperature range and package type are listed, together with typical forward‑current and reverse‑recovery waveforms. This manual is written in Chinese.
| Maximum forward current | 40 A (40HFL), 70 A (70HFL), 85 A (85HFL) |
|---|---|
| Maximum reverse voltage | 1000 V |
| Operating temperature range | -40 °C to 125 °C |
| Package type | DO‑203AB (DO‑5) |
The diodes are rated for up to 1000 V reverse voltage.
They can operate from –40 °C to 125 °C.
They are supplied in a DO‑203AB (DO‑5) package.
