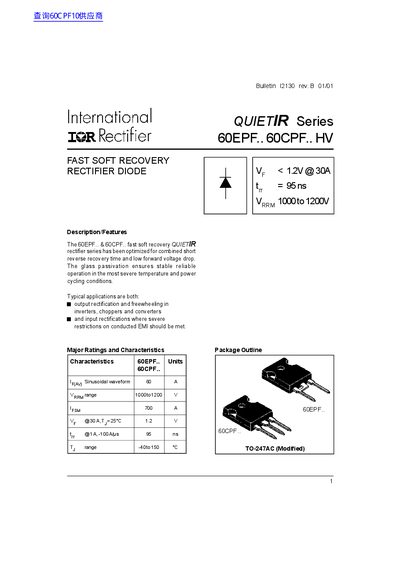

The data sheet provides the characteristics parameters of 60EPF.. & 60CPF.. fast soft recovery QUIETIR rectifier series, including maximum average forward current, maximum peak single cycle non-repetitive surge current, peak reverse voltage, maximum reverse recovery time, etc.
The QUIETIR series 60EPF.. and 60CPF.. are fast soft‑recovery rectifier diodes optimized for low forward voltage drop and short reverse recovery time. They are intended for output rectification, free‑wheeling, and input rectification in inverters, choppers and converters where EMI constraints are critical.
Key specifications include reverse voltage ratings of 1000 V (60EPF..) and 1200 V (60CPF..), average forward current of 60 A, peak non‑repetitive current of 700 A, forward voltage drop of 1.4 V at 60 A, reverse recovery time of 480 ns, and a junction temperature range of –40 °C to 150 °C. The devices are supplied in a TO‑247AC (modified) package with thermal resistance of 0.4 °C/W (junction‑to‑case).
