This is a document about Schottky rectifiers, which describes the features and characteristics of the product. The rectifier has a very low forward voltage drop and moderate leakage current, and is suitable for applications such as switching power supplies, converters, free-wheeling diodes, and reverse battery protection. It can operate reliably up to a junction temperature of 150°C and has features such as high purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance, high frequency operation, enhanced ruggedness, and long term reliability.

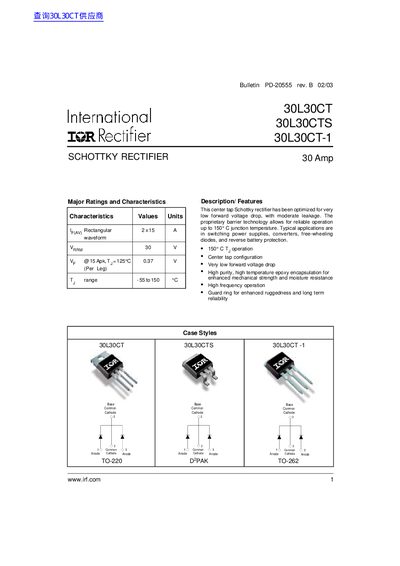

The 30L30CT series Schottky rectifiers are optimized for very low forward voltage drop and moderate leakage, making them suitable for switching power supplies, converters, free‑wheeling diodes, and reverse battery protection. They feature a common‑cathode configuration, high‑purity epoxy encapsulation, and a guard ring for enhanced ruggedness.
The bulletin lists key electrical specifications such as a maximum reverse voltage of 30 V, forward voltage drop as low as 0.37 V at 15 A and 125 °C, and a surge current capability of 220 A for 10 ms. Thermal data include a junction‑to‑case resistance of 0.8 °C/W and a maximum junction temperature of 150 °C. Ordering information and package dimensions for TO‑220, TO‑262, and D‑PAK styles are also provided.
| Maximum Reverse Voltage | 30 V |
|---|---|
| Forward Voltage Drop @15 A, 25 °C | 0.46 V |
| Thermal Resistance Junction‑to‑Case | 0.8 °C/W |
| Junction Capacitance (per leg) | 1500 pF |
| Surge Current (10 ms) | 220 A |
The series is rated for a maximum reverse voltage of 30 V.
The junction‑to‑case thermal resistance is 0.8 °C/W.
