ATR28XXD series high reliability DC/DC converters, input range 16-40VDC, output ±12V and ±15V, with 125W/in3 power density, 30W output power, fast loop response, suitable for harsh environments

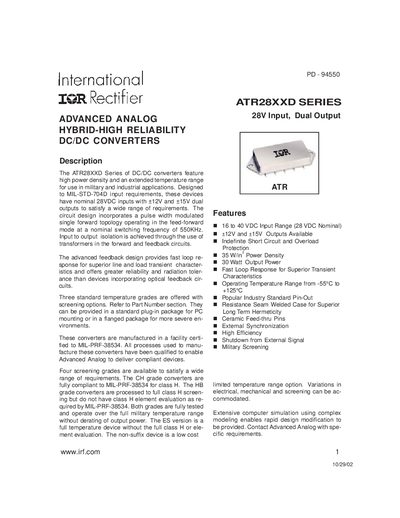

The ATR28XXD Series of DC/DC converters feature high power density and an extended temperature range designed for use in military and industrial applications. These devices are built to MIL-STD-704D input requirements with nominal 28VDC inputs providing +12V and +15V dual outputs.
| Input Voltage Range | 16 to 40 VDC (28 VDC Nominal) |
|---|---|
| Output Voltages | +12V and +15V |
| Output Power | 30 Watt |
| Efficiency | 82 % (Typical) |
The converters feature a 16 to 40 VDC Input Range with a nominal 28VDC input.
The devices provide +12V and +15V dual outputs.
Yes, the converters feature indefinite short circuit and overload protection.
