The 40HFL, 70HFL, 85HFL series fast recovery diodes feature short reverse recovery time, low stored charge, wide current range and excellent surge capabilities. They are suitable for applications in DC power supplies, inverters, converters, choppers, ultrasonic systems and for use as a free wheeling diode.

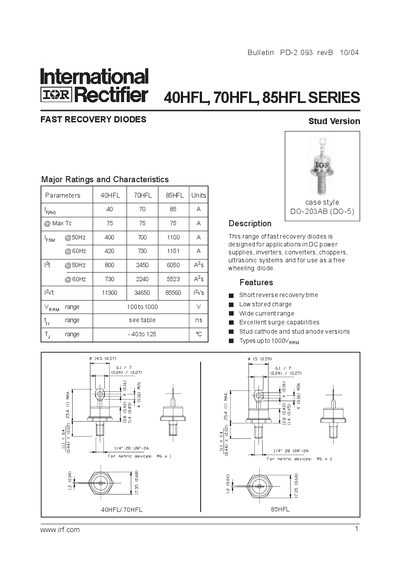

This document provides a technical overview of the International Rectifier 40HFL, 70HFL, and 85HFL Series Fast Recovery Diodes in Stud Version. These devices are designed for applications in DC power supplies, inverters, converters, choppers, ultrasonic systems, and as free-wheeling diodes.
| Case Style | DO-203AB (DO-5) |
|---|---|
| Max Case Temperature | 150 C |
| Reverse Voltage Range | 100 to 1000 V |
| Forward Current Range (40HFL) | Up to 50 A |
| Operating Temperature Range | -40 to +125 C |
The maximum case temperature rating is 150 C.
The maximum junction temperature (Tj) range is up to 125 degrees Celsius.
Metric device versions include sizes such as Me6x1 and Me8x1.
