This mosfet is produced by irf company and is suitable for automotive electronic applications. The rated maximum voltage is 75v, the rated maximum current is 130a, the rated maximum switching speed is 4.6v/ns, and the rated maximum working temperature is 175 °c.

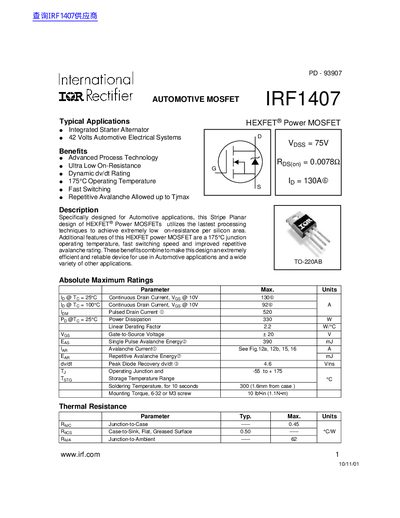

The IRF1407 is a HEXFET® power MOSFET designed for automotive 42 V electrical systems. It features an ultra‑low on‑resistance, high‑temperature operation up to 175 °C, fast switching, and a high repetitive avalanche rating, making it suitable for integrated starter‑alternator and other high‑current applications.
The document lists absolute maximum ratings, detailed electrical characteristics, typical output and transfer curves, capacitance behavior, avalanche performance, and the TO‑220AB package outline with dimensions and lead assignments. It also includes test circuit diagrams and thermal impedance data for design reference.
| On‑Resistance (RDS(on)) | 0.0078 Ω |
|---|---|
| Gate Threshold Voltage (VGS(th)) | 2.0 V – 4.0 V |
| Power Dissipation | 330 W |
| Single Pulse Avalanche Energy | 390 mJ |
The typical static drain‑to‑source on‑resistance is 0.0078 Ω when VGS = 10 V and ID = 78 A.
