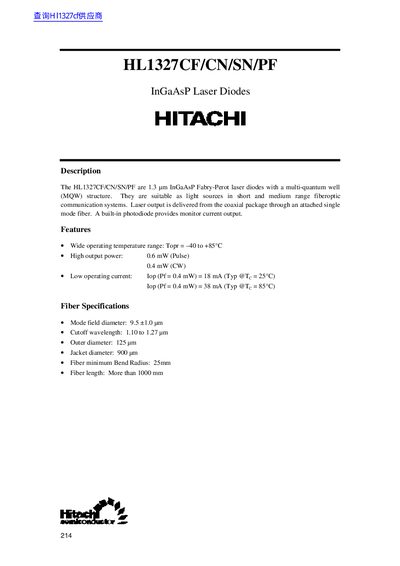

HL1327CF/CN/SN/PF are 1.3µm InGaAsP Fabry-Perot laser diodes with a multi-quantum well (MQW) structure. They are suitable as light sources in short and medium range fiberoptic communication systems. Laser output is delivered from the coaxial package through an attached single mode fiber. A built-in photodiode provides monitor current output.
The HL1327CF/CN/SN/PF series are 1.3 µm InGaAsP Fabry‑Perot laser diodes with a multi‑quantum‑well structure, intended for short‑ and medium‑range fiber‑optic communication. Light is emitted from a coaxial package into an attached single‑mode fiber, and a built‑in photodiode provides monitor current.
The datasheet lists absolute maximum ratings, optical and electrical characteristics, and typical performance curves such as output power versus current, wavelength versus temperature, frequency response, and pulse response.
| Operating temperature range | -40 °C to +85 °C |
|---|---|
| Pulse output power | 0.6 mW |
| CW output power | 0.4 mW |
| Threshold current (Ith) | 8 mA (min) – 20 mA (max) |
| Lasing wavelength range | 1280 nm – 1340 nm |
| Spectral width | ≤ 2 nm |
| Rise time (tr) | ≤ 0.5 ns (10‑90%) |
| Fall time (tf) | ≤ 0.5 ns (90‑10%) |
| LD reverse voltage | 2 V |
| PD reverse voltage | 15 V |
| Mode field diameter | 9.5 µm ± 1.0 µm |
| Fiber outer diameter | 125 µm |
| Jacket diameter | 900 µm |
The device operates from –40 °C up to +85 °C.
The pulse output power is specified as 0.6 mW.
The lasing wavelength spans from 1280 nm to 1340 nm.
Both rise and fall times are up to 0.5 ns (10‑90% for rise, 90‑10% for fall).
