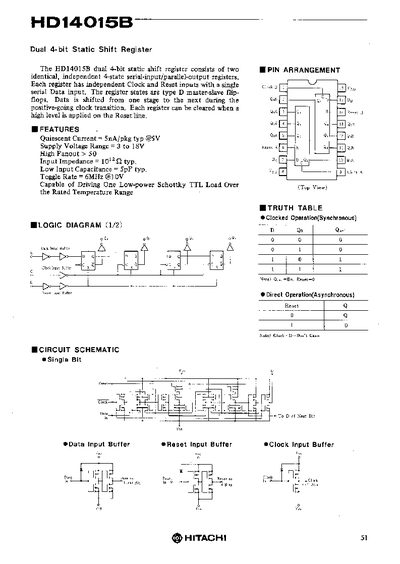

The HD14015B is a dual 4‑bit static shift register that provides two independent 4‑state serial‑input/parallel‑output registers. Each register features separate clock and reset inputs, a single serial data input, and master‑slave D‑type flip‑flops. Data shifts on the positive clock edge and can be cleared with a high reset level.
Key specifications include a quiescent current of 5 nA per package, supply voltage range of 3 V to 18 V, high fan‑out (>50), low input capacitance (5 pF), and a toggle rate of 6 MHz at 10 V. Electrical and switching characteristics such as rise/fall times, propagation delay, and pulse widths are detailed in the datasheet.
| Quiescent Current | 5 nA per package (typ) @5 V |
|---|---|
| Supply Voltage Range | 3 V to 18 V |
| High Fanout | > 50 |
| Low Input Capacitance | 5 pF (typ) |
| Toggle Rate | 6 MHz @10 V |
It is a dual 4‑bit static shift register with two independent serial‑input/parallel‑output registers.
