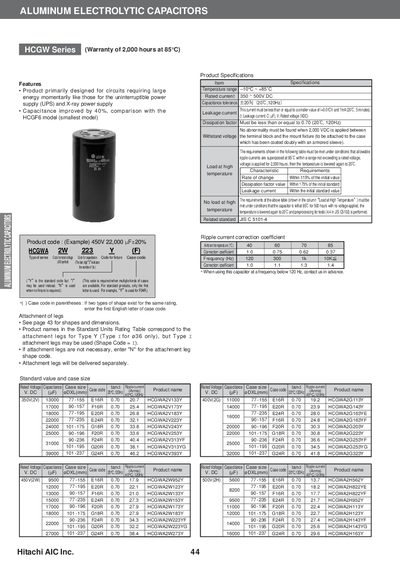

This document introduces the specifications and characteristics of the 44 type electrolytic capacitors, including capacitance, rated voltage, rated current, frequency, temperature range, etc.
The HCGW series capacitors are designed for applications requiring a wide temperature range and high reliability, such as UPS and X‑ray power supplies. They feature a warranty of 2,000 hours at 85 °C and meet JIS C5101‑4 standards.
Key specifications include a rated voltage of 350‑500 V DC, temperature range from –10 °C to +85 °C, capacitance tolerance of +20 % (20 °C, 120 Hz), and a dissipation factor not exceeding 0.70 at 20 °C, 120 Hz. Various case sizes and correction coefficients are listed for different voltage and capacitance options.
| Warranty | 2,000 hours at 85 °C |
|---|---|
| Temperature range | -10 °C to +85 °C |
| Rated voltage | 350 V – 500 V DC |
| Capacitance tolerance | +20 % (20 °C, 120 Hz) |
| Dissipation factor | ≤ 0.70 (20 °C, 120 Hz) |
The capacitors have a warranty of 2,000 hours at 85 °C.
They are designed to operate from –10 °C up to +85 °C.
The dissipation factor must be less than or equal to 0.70 at 20 °C, 120 Hz.
