R5005CNX is a low-voltage drive N-channel MOSFET from ROHM. It features a low on-resistance, fast switching speed, and easy to drive.

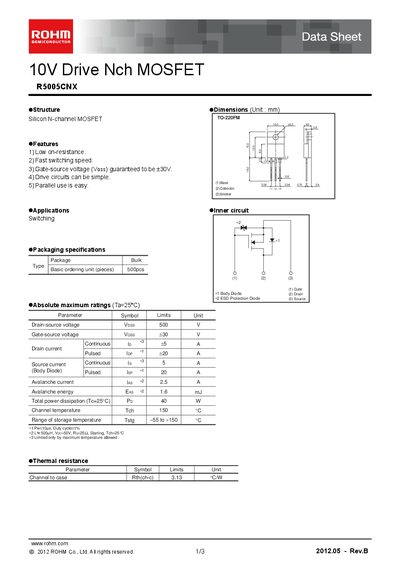

The ROHM R5005CNX is a 10 V drive N‑channel MOSFET in a TO‑220FM package. It offers low on‑resistance, fast switching speed, and a guaranteed +30 V gate‑source rating, making it suitable for simple drive circuits and parallel use.
The datasheet provides detailed absolute maximum ratings, thermal resistance, electrical characteristics, and example measurement circuits. Packaging information and ordering details are also included.
| Drain‑source voltage (VDS) | 500 V |
|---|---|
| Gate‑source voltage (VGS) | +30 V |
| Continuous drain current (ID) | 8 A |
| Total power dissipation (PD) | 40 W |
The maximum drain‑source voltage is 500 V.
The gate‑source voltage is guaranteed to be +30 V.
