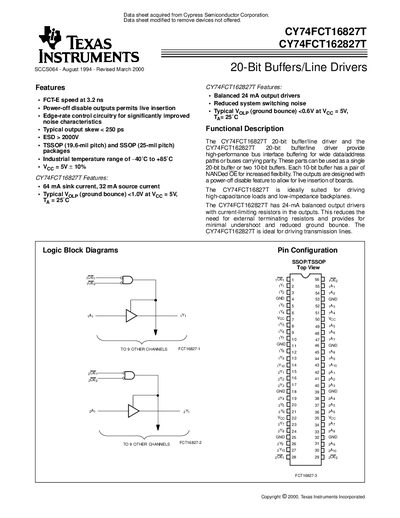

The CY74FCT162827T and CY74FCT16827T are 20-bit buffers/line drivers that provide high-performance bus interface buffering for wide data/address paths or buses carrying parity. These parts can be used as a single 20-bit buffer or two 10-bit buffers. Each 10-bit buffer has a pair of NANDed OE pins for increased flexibility. The outputs are designed with a power-off disable feature to allow for live insertion of boards. The CY74FCT16827T is ideally suited for driving high-capacitance loads and low-impedance backplanes. The CY74FCT162827T has 24mA balanced output drivers.
The CY74FCT16827T and CY74FCT162827T are 20‑bit buffer/line driver devices designed for high‑performance bus interfacing, capable of handling wide data/address paths and parity. They offer power‑off disable outputs for live insertion, edge‑rate control, and low‑noise operation.
The document provides detailed specifications such as propagation delays, output drive currents, ESD protection, temperature range, and package options, along with ordering codes and mechanical dimensions. It also includes safety notices and warranty information from Texas Instruments.
| FCT‑E speed | 3.2 ns |
|---|---|
| Typical output skew | < 250 ps |
| ESD rating | > 2000 V |
| Industrial temperature range | ‑40°C to +85°C |
| Sink current (CY74FCT16827T) | 64 mA |
| Source current (CY74FCT16827T) | 32 mA |
| Balanced output driver current (CY74FCT162827T) | 24 mA |
The devices are rated for an industrial temperature range of –40 °C to +85 °C.
Both devices have an ESD rating greater than 2000 V.
Typical output skew is less than 250 ps.
The CY74FCT16827T provides a sink current of 64 mA and a source current of 32 mA.
