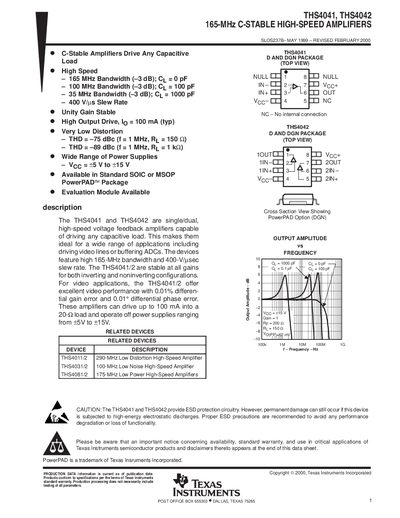

The THS4041 and THS4042 are single/dual, high-speed voltage feedback amplifiers capable of driving any capacitive load. This makes them ideal for a wide range of applications including driving video lines or buffering ADCs. The devices feature high 165-MHz bandwidth and 400-V/µsec slew rate. The THS4041/2 are stable at all gains for both inverting and noninverting configurations. For video applications, the THS4041/2 offer excellent video performance with 0.01% differential gain error and 0.01° differential phase error. These amplifiers can drive up to 100 mA into a 20-Ω load and operate off power supplies ranging from ±5V to ±15V.
The THS4041 and THS4042 are single/dual high‑speed voltage‑feedback amplifiers designed for driving capacitive loads such as video lines or ADC buffers. They offer a 165 MHz bandwidth, 400 V/µs slew rate, and up to 100 mA output drive, making them suitable for a wide range of high‑speed applications.
The datasheet lists absolute maximum ratings, recommended operating conditions, and detailed electrical characteristics including noise, distortion, gain, and power‑supply specifications. Typical performance curves and typical characteristic graphs illustrate gain, phase, output amplitude, and distortion versus frequency for various load capacitances.
| Bandwidth (0 pF load) | 165 MHz |
|---|---|
| Slew Rate | 400 V/µs |
| Typical Output Drive Current | 100 mA |
| Total Harmonic Distortion (100 pF load) | -75 dBc (1 MHz, 150 Ω) |
| Total Harmonic Distortion (1 kΩ load) | -89 dBc (1 MHz, 1 kΩ) |
The amplifiers can deliver up to 100 mA of output current (typical).
The devices have a 165 MHz bandwidth at a 0 pF load.
The slew rate is specified as 400 V/µs.
