lm224ka,lm324ka,lm2902kav are low-power, high-gain, frequency-compensated operational amplifiers that are suitable for single-supply and dual-supply operation. Input bias current and offset voltage are small, and common-mode range includes ground, allowing direct sensing near ground.

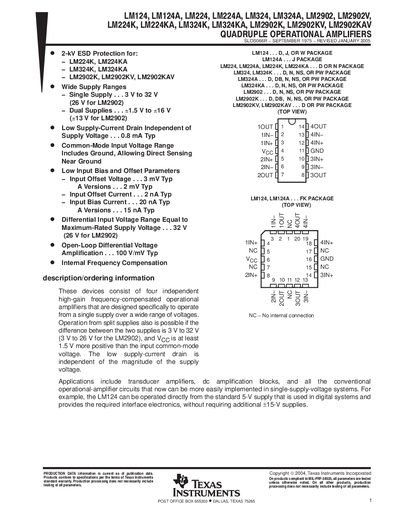

The LM124 is a quadruple operational amplifier designed for single‑supply operation over a wide voltage range. It can be powered from 3 V to 32 V and supports split‑supply configurations, offering low supply‑current drain independent of voltage.
The document lists detailed specifications such as input offset voltage, bias currents, and maximum rated supply voltage, as well as ordering codes for various package types and temperature ranges. It also includes ESD protection details and a notice about product warranties and revisions.
| Supply voltage range (single supply) | 3 V to 32 V |
|---|---|
| Supply voltage range (dual supplies) | 1.5 V to 16 V |
| Input offset voltage (typical) | 3 mV |
| Input bias current (typical) | 20 nA |
| Maximum‑rated supply voltage | 32 V |
| Operating temperature range (LM124) | -55 °C to 125 °C |
The LM124 can operate from a single supply of 3 V to 32 V, or from dual supplies of 1.5 V to 16 V.
Typical input offset voltage is 3 mV.
The maximum‑rated supply voltage is 32 V and the storage temperature range is –65 °C to 150 °C.
