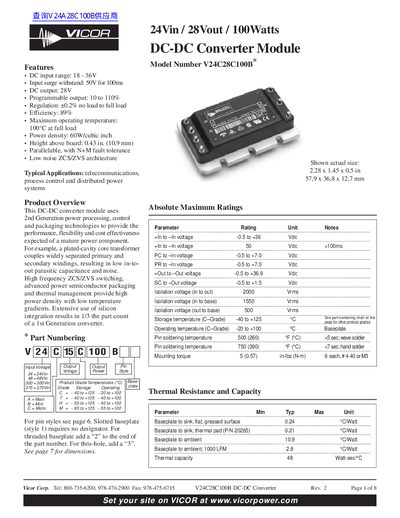

This datasheet is the specification parameter table of Vicor Corp.'s V24C28C100B DC-DC Converter.
The V24C28C100B is a high‑density DC‑DC converter module that accepts 18‑36 V input and delivers a regulated 28 V output up to 100 W. It features 0.2 % regulation, 89 % efficiency, and a compact 0.43‑in height for board‑mount applications.
The datasheet provides detailed electrical, mechanical, and control specifications, including isolation ratings, thermal data, pin functions, and parallel operation options. It also describes programming ranges, fault monitoring, and recommended mounting guidelines.
| Input voltage range | 18‑36 V |
|---|---|
| Output voltage | 28 V |
| Maximum output power | 100 W |
| Efficiency (nominal load) | 89 % |
| Power density | 60 W/cubic inch |
| Maximum operating temperature | 100 °C at full load |
| Isolation voltage (in to out) | 2000 Vrms |
| Height above board | 0.43 in (10.9 mm) |
| Weight | 2.1‑2.3 oz (60‑66 g) |
The converter accepts an input voltage from 18 V to 36 V.
It can deliver up to 100 W of output power.
The module reaches 89 % efficiency under nominal conditions.
The isolation voltage from input to output is rated at 2000 Vrms.
