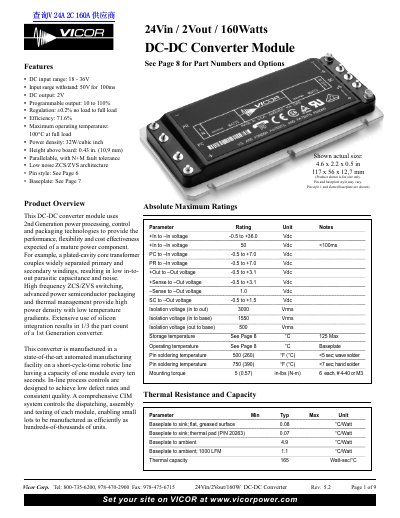

VICOR 24Vin 2Vout 160Watts DC-DC Converter Module See Page 8 for Part Numbers Options
This document provides comprehensive technical data for the Vicor 24Vin/2Vout/160W DC-DC Converter Module. It utilizes 2nd Generation power processing technologies to deliver high power density with low noise ZCS/ZVS architecture. Key features include a programmable output voltage range of 10% to 110%, ±0.2% regulation, and parallel operation capabilities for N+M fault tolerance.
Read onlineVICOR 24VIN specifications
| Input Voltage Range | -0.5 to +36.0 Vdc |
|---|---|
| Output Voltage | 2V (Nominal) |
| Maximum Output Power | 160 Watts |
| Efficiency (Typical) | 71.6% |
| Maximum Operating Temperature | 100°C |
| Isolation Voltage (In to Out) | 3000 Vrms |
Source: VICOR 24Vin 2Vout 160Watts DC-DC Converter Module See Page 8 for Part Numbers Options
All VICOR 24VIN documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input surge withstand capability?
The module can withstand an input surge of 50V for less than 100ms.
From: VICOR 24Vin 2Vout 160Watts DC-DC Converter Module See Page 8 for Part Numbers Options
Can the output voltage be programmed?
Yes, the output is programmable from 10% to 110% of the nominal voltage.
From: VICOR 24Vin 2Vout 160Watts DC-DC Converter Module See Page 8 for Part Numbers Options
What is the input surge withstand capability?
The module can withstand an input surge of 50V for less than 100ms.
From: VICOR 24Vin 24Vout 100Watts DC-DC Converter Module Model Number V24C24C100B
Is the output voltage programmable?
Yes, the output is programmable from 10% to 110% of the nominal voltage.
From: VICOR 24Vin 24Vout 100Watts DC-DC Converter Module Model Number V24C24C100B
What is the input voltage range of the V24C28C100B?
The converter accepts an input voltage from 18 V to 36 V.
From: VICOR 24Vin 28Vout 100Watts DC-DC Converter Module Model Number V24C28C100B *
What is the maximum output power the module can deliver?
It can deliver up to 100 W of output power.
From: VICOR 24Vin 28Vout 100Watts DC-DC Converter Module Model Number V24C28C100B *
