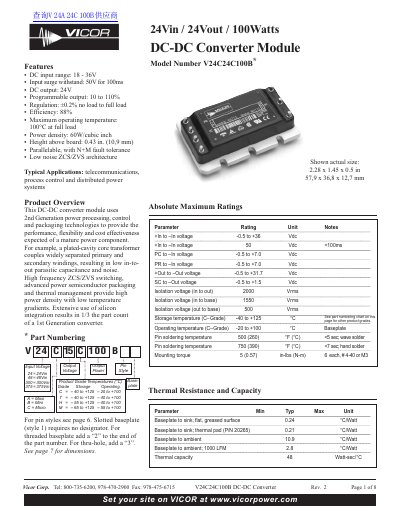

VICOR 24Vin 24Vout 100Watts DC-DC Converter Module Model Number V24C24C100B
This document is a technical datasheet for the Vicor V24C24C100B, a high-performance DC-DC converter module. It utilizes 2nd Generation power processing technology to provide an input range of 18-36V and a nominal output voltage of 24V with up to 110% programmability. The device features low noise ZCS/ZVS architecture and supports parallel operation with N+M fault tolerance, making it suitable for telecommunications and distributed power systems.
Read onlineVICOR 100WATTS specifications
| Input Voltage Range | -0.5 to +36 Vdc |
|---|---|
| Output Voltage | 24V (10-110% programmable) |
| Power Rating | 100 Watts |
| Efficiency | 88% |
| Operating Temperature Range (C-Grade) | -20 to +100 °C |
| Isolation Voltage (Input to Output) | 2000 Vrms |
Source: VICOR 24Vin 24Vout 100Watts DC-DC Converter Module Model Number V24C24C100B
All VICOR 100WATTS documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input surge withstand capability?
The module can withstand an input surge of 50V for less than 100ms.
From: VICOR 24Vin 24Vout 100Watts DC-DC Converter Module Model Number V24C24C100B
Is the output voltage programmable?
Yes, the output is programmable from 10% to 110% of the nominal voltage.
From: VICOR 24Vin 24Vout 100Watts DC-DC Converter Module Model Number V24C24C100B
What is the input voltage range of the V24C28C100B?
The converter accepts an input voltage from 18 V to 36 V.
From: VICOR 24Vin 28Vout 100Watts DC-DC Converter Module Model Number V24C28C100B *
What is the maximum output power the module can deliver?
It can deliver up to 100 W of output power.
From: VICOR 24Vin 28Vout 100Watts DC-DC Converter Module Model Number V24C28C100B *
