2SK1183 N-Channel MOSFET Datasheet

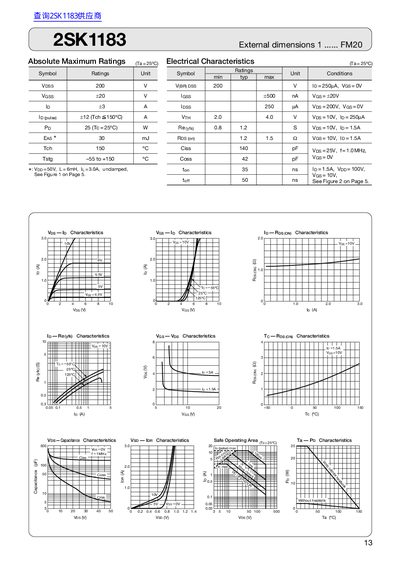

This datasheet provides the electrical characteristics, absolute maximum ratings, and external dimensions of the FUJI Electril 2SK1183 transistor. It includes characteristic curves for voltage, current, and capacitance, as well as safe operating area information.
The document also lists key parameters such as maximum drain‑source voltage, drain current, power dissipation, and operating temperature range, enabling designers to assess suitability for their circuits. This manual is written in Japanese.
| Maximum Drain‑Source Voltage (Vpss) | 200 V |
|---|---|
| Maximum Drain Current (Id) | 1.5 A |
| Power Dissipation (Pp) | 25 W |
| Output Capacitance (Coss) | 42 pF |
| Operating Temperature Range | -55 °C to +150 °C |
The maximum drain‑source voltage is 200 V.
The device can handle up to 1.5 A of drain current.
It is rated for a power dissipation of 25 W.
The specified operating temperature range is –55 °C to +150 °C.
