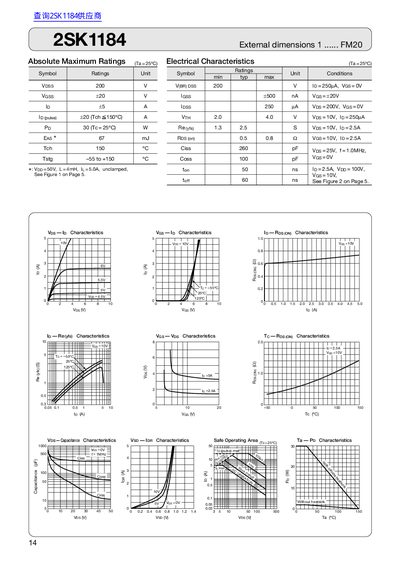

2SK1184 datasheet
This document presents the specifications of the 2SK1184 semiconductor, including absolute maximum ratings and detailed electrical characteristics.
Key data such as Vpss (200 V), Vess (+20 V), pulse current (20 A), and power dissipation (30 W) are listed along with capacitance values and safe‑operating‑area curves. This manual is written in Japanese.
| Vpss (Maximum Drain‑Source Voltage) | 200 V |
|---|---|
| Vess (Maximum Source‑Source Voltage) | +20 V |
| Ip (Continuous Drain Current) | 250 µA |
| Id (Pulse Current) | 20 A |
| Pp (Maximum Power Dissipation) | 30 W |
| Ciss (Input Capacitance) | 260 pF |
| Coss (Output Capacitance) | 100 pF |
The maximum drain‑source voltage is 200 V.
The device can handle a pulse current of 20 A.
The typical input capacitance is 260 pF.
