The document provides information about the absolute maximum ratings and electrical characteristics of an electronic product. The brand of the product is not specified, and the model is 2SK1189. The document provides detailed information about voltage, current, and resistance.

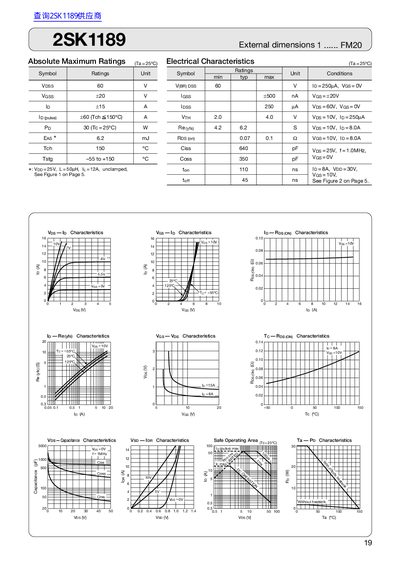

This datasheet provides the electrical characteristics, absolute maximum ratings, and mechanical dimensions of the 2SK1189 component. It includes tables for voltage limits, current ratings, capacitance values, and safe operating area curves.
Key sections cover absolute maximum ratings, electrical characteristics, capacitance characteristics, and temperature specifications, allowing designers to assess suitability for their circuits. This manual is written in Japanese.
| Drain‑Source Voltage (Vpss) | 60 V |
|---|---|
| Source‑Source Voltage (Vess) | +20 V |
| Operating Temperature Range (Tstg) | -55 °C to +150 °C |
| Input Capacitance (Ciss) | 640 pF |
The maximum drain‑source voltage is 60 V.
It can operate from –55 °C up to +150 °C.
The input capacitance (Ciss) is 640 pF.
The source‑source voltage rating is +20 V.
