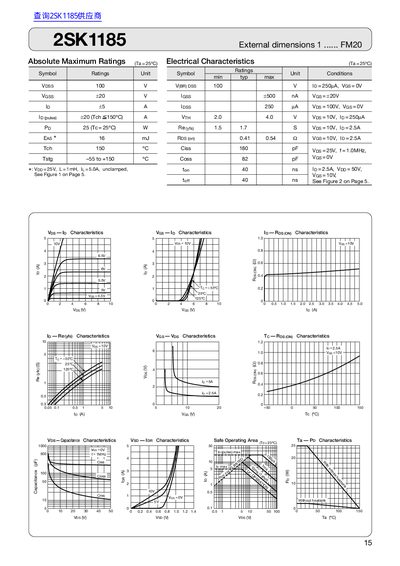

FUJI Electril 2SK1185 Datasheet

This document describes the absolute maximum ratings and electrical characteristics of the product, including VDS, ID, VGS, RDS(on), etc.

Brand: FUJI
Category: Other Electronics
Document type: Datasheet
Language: Japanese
Pages: 1
File format: PDF
File size: 32 KB
Published: 01 June, 2012
Updated: 28 September, 2023
MD5 checksum: 3F9879B50E8642B060F7037C1F73F36F
PDF: FUJI Electril 2SK1185 Datasheet PDF

About this manual

The 2SK1185 datasheet provides key electrical characteristics, absolute maximum ratings, and package dimensions for the device. It includes detailed tables for voltage limits, current capabilities, and capacitance values.

The document also lists safe operating area parameters and typical performance curves, helping designers assess suitability for power switching applications. This manual is written in Japanese.

What's inside

External dimensions
Absolute Maximum Ratings
Electrical Characteristics
Safe Operating Area
Capacitance Data

Specifications

Maximum supply voltage (Vpss)	100 V
Maximum source voltage (Vess)	+20 V
Gate threshold voltage (Vth)	2.0 – 4.0 V
Input capacitance (Ciss)	180 pF
Output capacitance (Coss)	82 pF
Maximum power dissipation (Pp)	25 W

Frequently asked questions

What is the maximum supply voltage for the 2SK1185?

The device can tolerate up to 100 V supply voltage (Vpss).

What is the gate threshold voltage range?

The gate threshold voltage (Vth) ranges from 2.0 V to 4.0 V.

What is the maximum power dissipation rating?

The device can dissipate up to 25 W (Pp).

Download PDF (32 KB)
