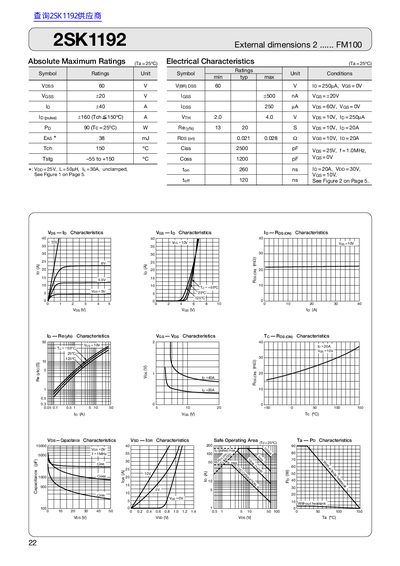

This document provides the key electrical specifications for the FUJI Electril 2SK1192 power transistor, including absolute maximum ratings, typical operating parameters, and safe‑operating‑area curves.
The data cover voltage limits, current capabilities, power dissipation, capacitance values, and temperature ranges, enabling designers to assess suitability for high‑power switching applications.
| Maximum collector‑emitter voltage (Voss) | 60 V |
|---|---|
| Maximum emitter‑base voltage (Vess) | +20 V |
| Input capacitance (Ciss) | 2500 pF |
| Output capacitance (Coss) | 1200 pF |
| Maximum junction temperature (Tch) | 150 °C |
| Operating temperature range (Tstg) | -55 to +150 °C |
The device is rated for a maximum Voss of 60 V.
