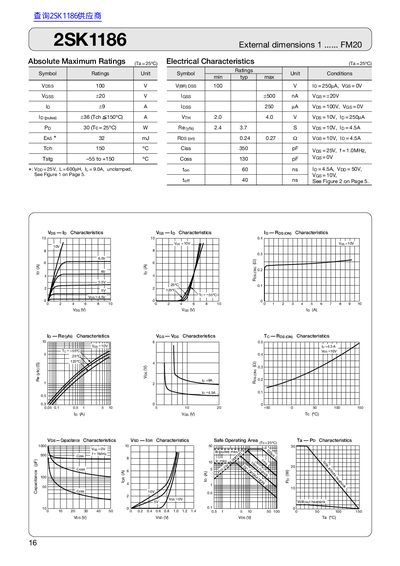

This datasheet provides the electrical characteristics, maximum ratings, and safe operating area for the FUJI Electril 2SK1186. It includes detailed tables of voltage, current, power, and capacitance parameters.
The document is intended for designers and engineers who need precise performance data for circuit design and verification. All values are given under standard test conditions (Ta=25°C) unless otherwise noted. This manual is written in Japanese.
| Drain‑Source Voltage (Vpss) | 100 V |
|---|---|
| Source‑Gate Voltage (Vess) | +20 V |
| Gate Leakage Current (Ip) | 250 µA |
| Drain‑Source Voltage Rating (VDDp) | 25 V |
The maximum drain‑source voltage is 100 V.
The gate‑source voltage rating is +20 V.
