This document describes the absolute maximum ratings and electrical characteristics of an electronic product. The features of the product include maximum voltage, maximum current, threshold voltage, reverse leakage current, etc.

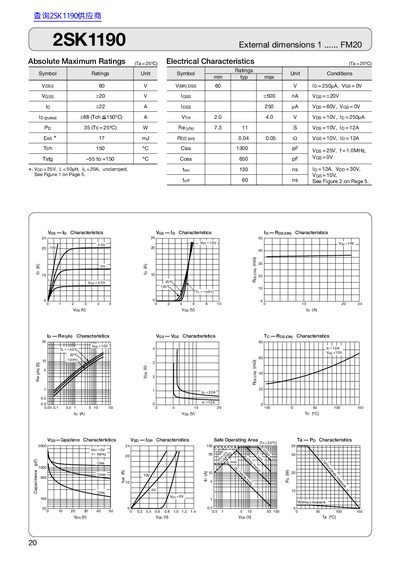

This datasheet presents the key specifications of the FUJI Electril 2SK1190 transistor, including its external dimensions, absolute maximum ratings, and detailed electrical characteristics. It also includes safe‑operating‑area graphs and capacitance data.
The document lists parameters such as drain‑source voltage, gate‑source voltage, continuous drain current, power dissipation, and various capacitances, enabling designers to assess suitability for their circuits. This manual is written in Japanese.
| Drain‑Source Voltage (Vds) | 60 V |
|---|---|
| Gate‑Source Voltage (Vgs) | +20 V / -20 V |
| Power Dissipation (Pd) | 35 W |
| Input Capacitance (Ciss) | 1300 pF |
| Output Capacitance (Coss) | 650 pF |
| On‑Resistance (Rds(on)) | 0.04 Ω |
The maximum drain‑source voltage is 60 V.
It is rated for a power dissipation of 35 W at 25 °C.
