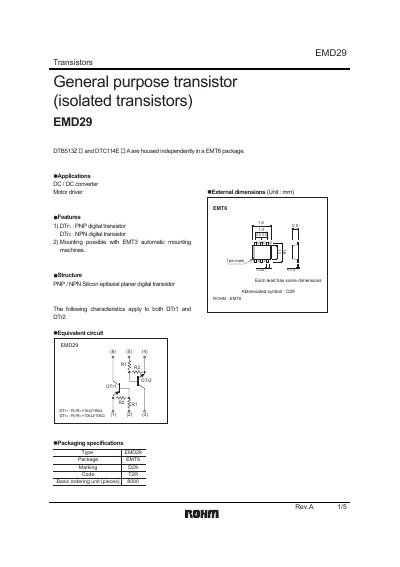

EMD29 is a ROHM digital NPN / PNP transistor with a size of 0.22mm x 1.2mm x 1.6mm and an EMT6 package. The rated working voltage is -12V, the input voltage is -10V to +5V, the output current is mA, and the maximum power consumption is 120mW.
The EMD29 series provides two isolated digital transistors, DTr1 (PNP) and DTr2 (NPN), packaged in a standard EMT6 case. It is intended for use in DC/DC converters, motor drivers and other electronic applications.
The document lists absolute maximum ratings, electrical characteristics, packaging details and application notes, along with an appendix covering usage restrictions and export control information. This manual is written in Chinese.
| Package type | EMT6 |
|---|---|
| Supply voltage DTr1 | -12 V |
| Supply voltage DTr2 | 50 V |
| Maximum power dissipation (total) | 150 mW |
| Resistance ratio R2/R1 (DTr1) | 8‑12 |
| Resistance ratio R2/R1 (DTr2) | 0.8‑1.2 |
The EMD29 transistors are housed in an EMT6 package.
The total power dissipation rating is 150 mW.
Yes, the document advises consulting a sales representative before using the parts in medical, aerospace, nuclear or other safety‑critical devices.
