WP7083YD YELLOW is a LED product from WYNEC, featuring outstanding material efficiency, reliable and rugged, IC compatible and RoHS compliant.

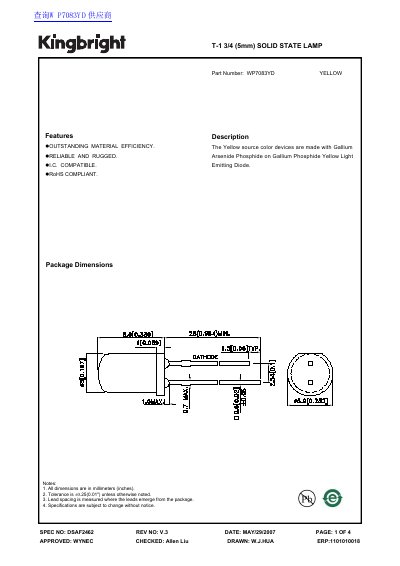

This document is a technical datasheet for the Wyntek WP7083YD Yellow Light Emitting Diode (LED). The device utilizes Gallium Arsenide Phosphide on Gallium Phosphide technology and features an outstanding material efficiency, reliability, and ruggedness. It is designed to be IC compatible and RoHS compliant.
| Peak Wavelength | 590 nm |
|---|---|
| Dominant Wavelength | 588 nm |
| Spectral Line Half-width | 35 nm |
| Capacitance | 20 pF |
| Forward Voltage (Typ) | 2.1 V |
| Reverse Current (Max) | 10 uA |
| Power Dissipation | 75 mW |
| DC Forward Current (Max) | 30 mA |
| Peak Forward Current (Max) | 140 mA |
| Reverse Voltage (Max) | 5 V |
| Operating Temperature Range | -40°C To +85°C |
The peak wavelength is 590 nm when the forward current is 20 mA.
The maximum DC forward current is 30 mA.
The device operates from -40°C to +85°C.
