This is a datasheet for WP7083PBD/Z LED. It contains information about the package dimensions, features, electrical and optical characteristics, and absolute maximum ratings.

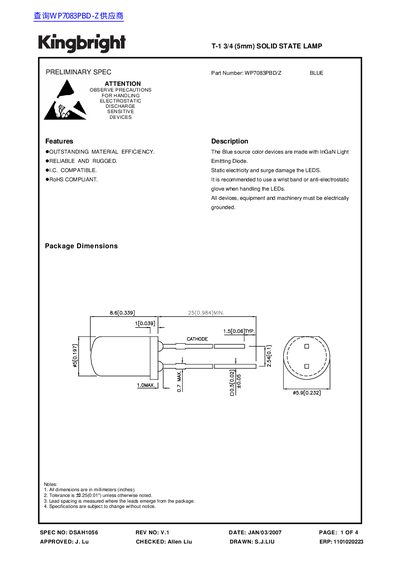

The document is a preliminary specification sheet for the Kingbright WP7083PBD/Z, a 5mm (T-1 3/4) blue solid-state lamp utilizing InGaN technology. It highlights features such as outstanding material efficiency, reliability, RoHS compliance, and compatibility with standard packages.
The datasheet details electrical and optical characteristics at 25°C, including peak wavelength of 458nm, forward voltage between 3.2V and 3.7V, and a maximum DC forward current of 30mA. It also lists absolute maximum ratings for power dissipation (111mW) and operating temperatures (-40°C to +85°C), along with packaging specifications.
| Part Number | WP7083PBD/Z |
|---|---|
| Color | Blue (InGaN) |
| Peak Wavelength | 458 nm |
| Dominant Wavelength | 465 nm |
| Forward Voltage (Typ) | 3.2 V |
| Reverse Current (Max) | 10 uA |
| Power Dissipation (Max) | 111 mW |
| DC Forward Current (Max) | 30 mA |
| Operating Temperature Range | -40°C To +85°C |
The peak wavelength for this device is 458 nm.
The DC Forward Current maximum rating is 30 mA, with a peak pulse capability of 100 mA.
Yes, the document states that the device is RoHS Compliant.
