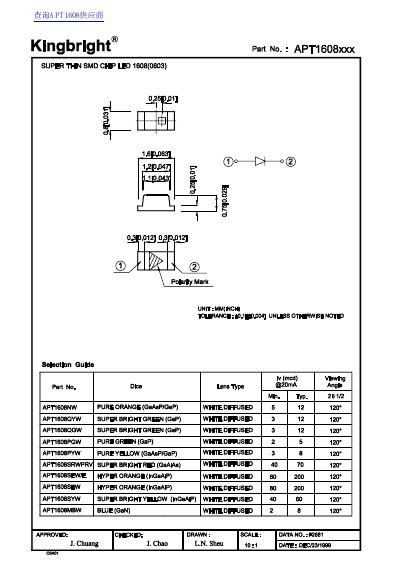

The document is a datasheet for the Kingbright APT1608xxx series of Super Thin SMD Chip LEDs, also known as 1608 (0603) size. It includes mechanical dimensions and a selection guide for various part numbers.
The selection guide lists specific part numbers such as APT1608NW, APT1608QYW, and APT1608SRWPRV, detailing their color, material composition (e.g., GaAsP, GaP, InGaAlP), and viewing angles.
| Package Size | 1608 (0603) |
|---|---|
| Tolerance | +0.1 mm |
| Part Number Series | APT1608xxx |
| Viewing Angle | 120° |
The package size is 1608, which corresponds to 0603 in imperial units.
The tolerance is +0.1 mm unless otherwise noted.
