APT1608QBC/D Blue LED lamp has low power consumption, wide viewing angle, suitable for backlight and indicator.

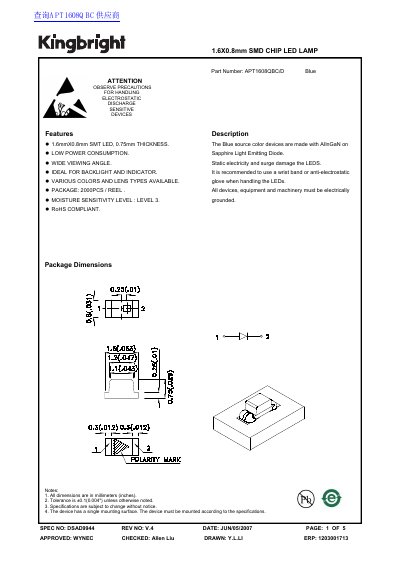

The document describes the Kingbright APT1608QBC/D, a 1.6mm x 0.8mm SMT LED with a blue source color made with AlInGaN on Sapphire. It is designed for backlight and indicator applications, featuring low power consumption and a wide viewing angle. The device is RoHS compliant and packaged in reels of 2000 pieces.
| Package Dimensions | 1.6mm x 0.8mm |
|---|---|
| Thickness | 0.75mm |
| Peak Wavelength | 468 nm |
| Dominant Wavelength | 470 nm |
| Forward Voltage (Typ) | 3.3 V |
| Reverse Current (Max) | 10 uA |
| Power Dissipation | 120 mW |
| DC Forward Current | 30 mA |
| Operating Temperature | -40°C To +85°C |
| Moisture Sensitivity Level | Level 3 |
The viewing angle is 120 degrees.
Yes, the device is RoHS compliant.
The recommended reflow temperature is 245°C (+/- 5°C).
