MNR12 is a 2-chip rectangular chip resistor network produced by ROHM, which has the characteristics of small size, light weight and high-density mounting.
The MNR12 is a compact 0603x2 chip resistor network featuring convex electrodes, a small rectangular form factor, and high‑density mounting capability. It is compatible with a wide range of mounting equipment and meets ISO9001/ISO‑TS 16949 certification.

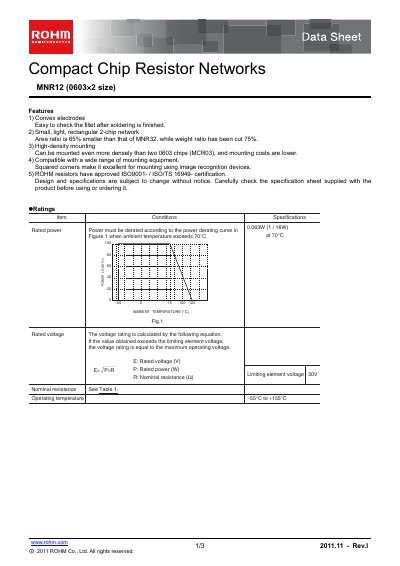

The datasheet provides electrical ratings such as a rated power of 0.063 W, a rated voltage of 50 V, and an operating temperature range of –55 °C to +155 °C. Mechanical information includes package dimensions (0.64 mm × 0.15 mm) and packaging options like paper tape and reels. Reliability test conditions and soldering guidelines are also included.
| Rated Voltage | 50 V |
|---|---|
| Operating Temperature | -55 °C to +155 °C |
| Rated Current | 1 A |
| Package Dimensions | 0.64 mm × 0.15 mm |
The MNR12 is rated for a maximum voltage of 50 V.
It can operate from –55 °C up to +155 °C.
