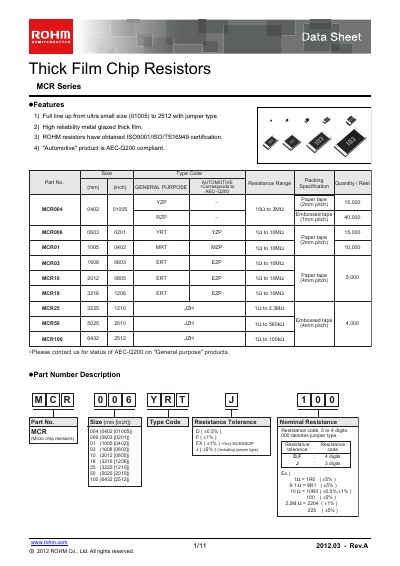

This document describes the features and characteristics of ROHM's MCR series thick film chip resistors, including a full lineup from ultra small size (01005) to 2512 with jumper type, high reliability metal glazed thick film technology, ISO9001/ISO/TS16949 certification, and AEC-Q200 compliance for automotive products. The product specifications include resistance range, package type, and quantity per reel.
The ROHM MCR series data sheet provides detailed specifications for a family of thick‑film chip resistors ranging from 01005 (0402) to 2512 (6432) sizes. It includes product listings for both general‑purpose and automotive grades, part numbers, resistance ranges, tolerances, and compliance information such as AEC‑Q200 certification.
Key sections cover resistor dimensions and markings, tape and reel packaging details, derating curves for temperature, and electrical characteristics like insulation resistance, failure rate, and weight. The document also outlines test conditions, solderability, and mechanical robustness for reliable use in electronic equipment.
| Maximum operating temperature | +125 °C |
|---|---|
| AEC‑Q200 compliance (automotive) | Yes |
The resistors can operate from –55 °C up to +125 °C.
Jumper type resistors have a maximum current of 0.54 A (Rmax = 50 mΩ).
Yes, the automotive product line is AEC‑Q200 compliant.
