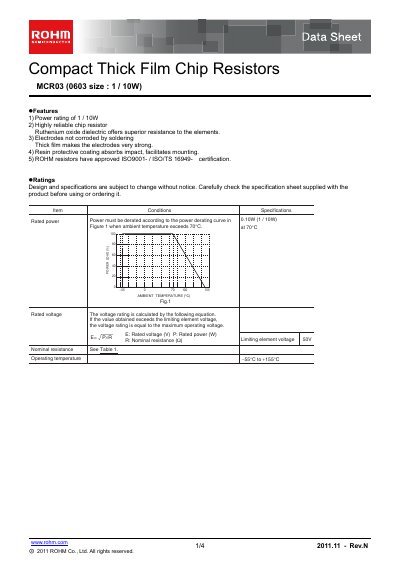

The data sheet provides detailed information on MCR03 chip resistors, including power rating, rated voltage, operating temperature, and nominal resistance.
The MCRO3 is a compact 0603‑size thick‑film chip resistor with a power rating of 0.1 W. It features a ruthenium‑oxide dielectric for high reliability, corrosion‑resistant electrodes, and a protective resin coating. The device complies with ISO9001 and ISO/TS 16949 certifications.
The datasheet lists electrical ratings such as a 50 V limiting element voltage, 1 A rated current, and an operating temperature range of –55 °C to +155 °C. Mechanical details include the 0603 package dimensions and various packaging options, including JEITA‑compliant reels and paper‑tape formats.
| Power rating | 0.1 W |
|---|---|
| Rated voltage | 50 V |
| Rated current | 1 A |
| Operating temperature range | -55 °C to +155 °C |
| Package size | 0603 |
| Packaging format | Reel (180 mm) compatible with EIAJ ET‑72008 |
The MCRO3 resistor is rated for 0.1 W (1/10 W) power.
It can operate from –55 °C up to +155 °C.
The limiting element voltage is 50 V, which is the rated voltage.
