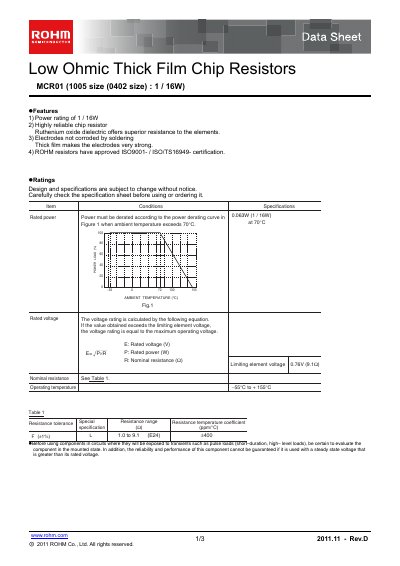

This document describes the features and characteristics of the MCR01 low ohmic thick film chip resistors produced by ROHM Co., Ltd., including a power rating of 1/16W, superior resistance to the elements, electrodes that are not corroded by soldering, and ISO certification.
The MCR01 is a low‑ohmic thick‑film chip resistor offered in 1005 (0402) size with a power rating of 1/16 W. It features a ruthenium‑oxide dielectric for high reliability and electrodes that resist corrosion during soldering.
Key specifications include an operating temperature range of –55 °C to +155 °C, a rated voltage of 0.76 V, and dimensions suitable for surface‑mount applications. The part is supplied on reel (180 mm) packaging compatible with the JEITA EIAJ ET‑7200B standard, and detailed test and reliability data are provided for design engineers.
| Power rating | 1/16 W |
|---|---|
| Operating temperature range | -55 °C to +155 °C |
| Rated voltage | 0.76 V |
| Package size | 1005 (0402) |
| Resistive element material | Oxide metal thick film |
| Packaging type | Reel (180 mm) compatible with JEITA EIAJ ET‑7200B |
The MCR01 resistor is rated for 1/16 W (0.068 W).
It can operate from –55 °C up to +155 °C.
The rated voltage is 0.76 V, based on the limiting element voltage.
It is supplied on a 180 mm reel that complies with the JEITA EIAJ ET‑7200B standard.
