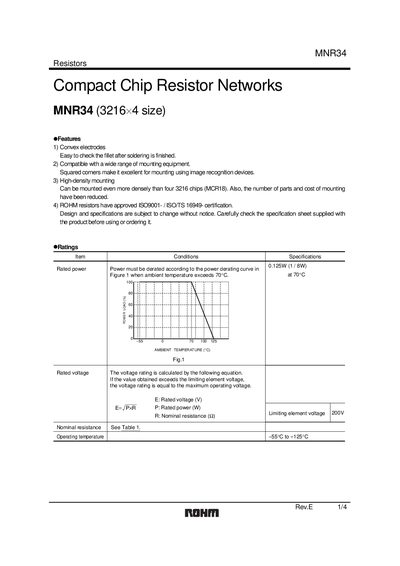

MNR34 Resistors Rev.E 1/4 Compact Chip Resistor Networks MNR34 (3216×4 size) is a resistor network product with convex electrodes, which makes it easy to check the fillet after soldering. It is compatible with a wide range of mounting equipment and is excellent for mounting using image recognition devices due to its squared corners. It can be mounted even more densely than four 3216 chips (MCR18), thereby reducing the number of parts and cost of mounting.
The MNR34 series is a compact chip resistor network featuring convex electrodes, high‑density mounting, and compatibility with a wide range of mounting equipment. It is designed for use in general‑purpose electronic devices such as audio‑visual, office‑automation, and communication equipment.
The datasheet lists electrical ratings (0.125 W rated power, 2 A rated current, –55 °C to +125 °C operating temperature), mechanical dimensions, packaging options (reel, 4 000 units per reel, JEITA‑compatible), and part‑number conventions. It also includes test conditions and reliability notes for designers.
| Operating Temperature | -55 °C to +125 °C |
|---|---|
| Rated Current | 2 A |
| Resistance Tolerance | ±5 % |
It can operate from –55 °C up to +125 °C.
The rated current is 2 A.
