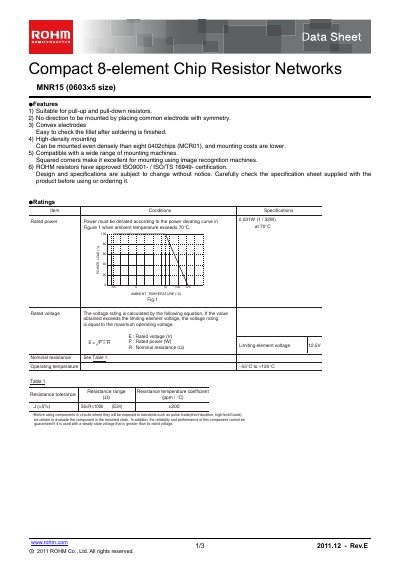

This document describes the features and characteristics of ROHM's compact 8-element chip resistor network MNR15 (0603x5 size), suitable for pull-up and pull-down resistors, with high-density mounting capability and compatibility with various mounting machines.
The MNR15 is a compact 8‑element chip resistor network (0603×5 size) designed for pull‑up and pull‑down applications. It offers high‑density mounting, convex electrodes for easy inspection, and compatibility with a wide range of mounting machines.
The datasheet lists electrical ratings such as operating temperature from –55 °C to +125 °C, a limiting element voltage of 12.5 V, and a resistance tolerance of 5 %. Mechanical and reliability data, including recommended soldering conditions and packaging options (reel and tape), are also provided.
| Operating temperature | –55 °C to +125 °C |
|---|---|
| Limiting element voltage | 12.5 V |
| Resistance tolerance | 5 % |
| Soldering immersion time | 2.0 + 0.5 s |
| Packaging type | Reel, Tape |
The MNR15 operates from –55 °C up to +125 °C.
The limiting element voltage is 12.5 V, which defines the maximum rated voltage.
The part is supplied on reel and tape, compliant with JEITA ET‑72008.
