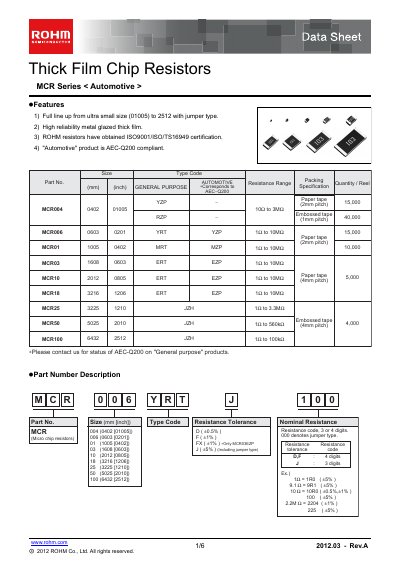

This document is a product manual from ROHM Co., Ltd. It introduces the features and characteristics of the MCR series thick film chip resistors, including product specifications, packaging, models, and voltage range.
The MCR series provides automotive‑grade thick‑film chip resistors ranging from ultra‑small 01005 packages up to 2512. They feature high‑reliability metal‑glazed film, ISO‑9001/ISO‑TS16949 certification and AEC‑Q200 compliance.
The sheet lists part numbers, dimensions, resistance ranges, tolerance codes, derating curves, tape and reel specifications, as well as handling and solderability guidelines for designers and manufacturers.
| Size range | 01005 to 2512 |
|---|---|
| Compliance | AEC‑Q200 |
| Certifications | ISO9001, ISO/TS16949 |
| Derating start temperature | 70 °C |
| Insulation resistance | 4000 MΩ |
| Maximum operating temperature | 125 °C |
The MCR series is compliant with the AEC‑Q200 automotive qualification standard.
ROHM resistors are certified to ISO‑9001 and ISO/TS‑16949.
