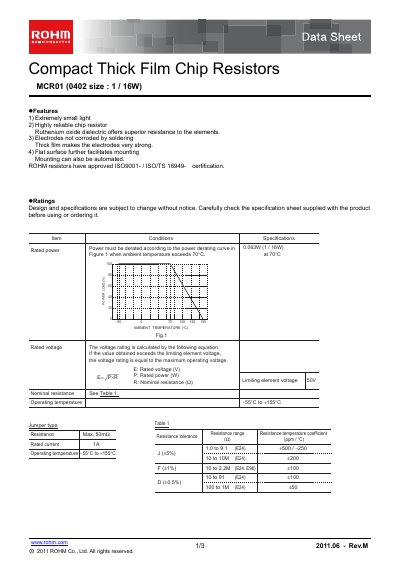

This document is a specification sheet for ROHM Co., Ltd.'s MCR01 chip resistor. It introduces the features and characteristics of the product, including the resistance range, resistance accuracy, resistance temperature coefficient, rated power, rated voltage, and operating temperature.
This datasheet provides the electrical and mechanical specifications for the ROHM MCR01 compact thick‑film chip resistor, sized 0402 and rated at 1/16 W. It includes features, ratings, and test conditions relevant to designers.
The document details the resistor's rated power, voltage, temperature range, tolerance codes, packaging options, and material composition, along with standard compliance notes and usage guidelines.
| Rated power | 0.063 W (1/16 W) |
|---|---|
| Rated voltage | 50 V |
| Operating temperature range | -55 °C to +155 °C |
| Rated current | 1 A |
| Resistance range | 10 Ω to 10 MΩ |
| Packaging type | Reel, Tape, Bulk case |
The MCR01 resistor is rated at 0.063 W (1/16 W).
It can operate from –55 °C up to +155 °C.
The limiting element voltage is 50 V, which defines its rated voltage.
The resistor is supplied on reel, tape, and bulk‑case formats.
