The TRR01 0402 1/4 Sulfur Tolerant Chip Resistors is a new product from ROHM. It features a unique protective material that prevents silver sulfide from occurring under sulfur environments, and it is highly recommended for applications in automotive, industrial, and power supply applications under sulfur environments. It also has good cost performance compared to Au terminal components.
The TRRO01 series are sulfur‑tolerant chip resistors designed for automotive, industrial and power‑supply applications where exposure to sulfur can cause silver sulfide formation. They are built with a silver thick‑film electrode and a protective coating to ensure reliability in harsh environments.

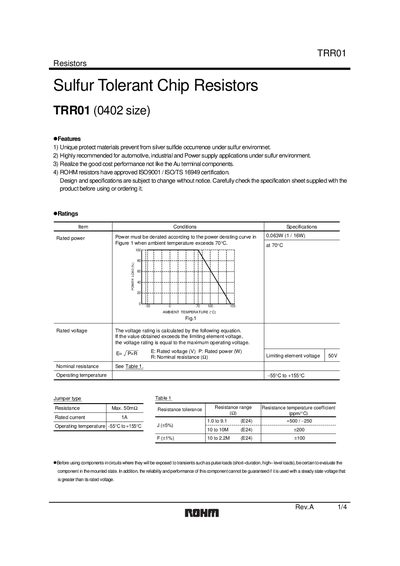

The datasheet lists electrical ratings (rated power up to 0.063 W, rated voltage 50 V, rated current 1 A), temperature range (‑55 °C to +155 °C), overload capability (100 V for 2 s), mechanical and solder‑heat resistance, as well as physical dimensions, material composition, and packaging options such as JEITA‑compliant reels and paper tape.
| Rated Power | 0‑0.063 W (1/16 W) |
|---|---|
| Rated Voltage | 50 V |
| Operating Temperature Range | -55 °C to +155 °C |
| Maximum Overload Voltage | 100 V (2 s) |
| Resistance Tolerance | ±5 % |
The rated voltage is 50 V.
It can operate from –55 °C up to +155 °C.
The resistor can withstand a maximum overload voltage of 100 V for 2 seconds.
