MNR04 (1005 4 size) is a high-density chip resistor network launched by ROHM company. It has the advantages of small size, light weight, high-density mounting, and can be used in a variety of devices.
The ROHM MNR04 is a compact 1005 × 4 chip resistor network offering a very small footprint and high‑density mounting. It is designed for a wide variety of devices, with convex electrodes for easy visual inspection after soldering.

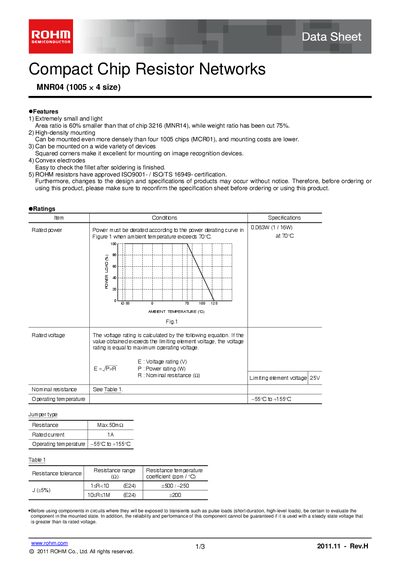

The datasheet provides detailed electrical ratings, dimensional drawings, packaging information and part‑number conventions, along with safety and usage notes for designers.
| Rated power | 0.068 W (1/16 W) |
|---|---|
| Rated voltage | 25 V (limiting element voltage) |
| Rated current | 1 A |
| Operating temperature range | -55 °C to +155 °C |
The device can operate from –55 °C up to +155 °C.
The rated current is 1 A.
