MNR02 is a compact chip resistor network produced by ROHM. It is 60% smaller and 75% lighter than MNR12 in terms of area ratio and weight ratio respectively. It can be mounted more densely than two MCR01 chips and reduce the cost of mounting. It is also compatible with a wide range of mounting equipment.
The ROHM MNR02 is a compact chip resistor network designed for high‑density mounting. It offers a small footprint (60 % smaller than the 1616 chip) and lightweight construction, with convex electrodes for easy visual inspection after soldering.

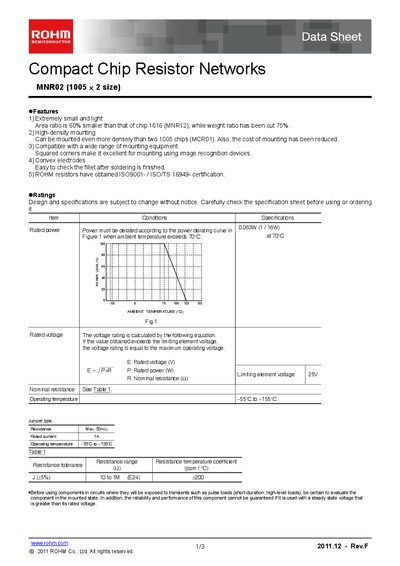

The datasheet provides detailed specifications such as rated power, voltage, temperature range, resistance values and packaging options, along with reliability notes and compliance information.
| Rated voltage | 25 V (limiting element voltage) |
|---|---|
| Operating temperature range | -55 °C to +155 °C |
| Rated current | 1 A |
It can operate from –55 °C up to +155 °C.
The limiting element voltage is 25 V, which defines the maximum rating.
