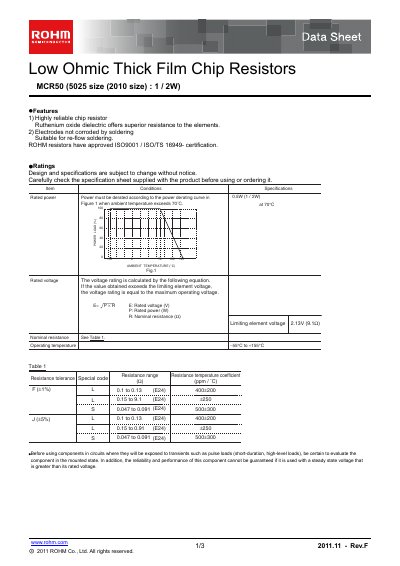

This document describes the features and characteristics of ROHM's MCR50 Low Ohmic Thick Film Chip Resistors, such as high reliability, corrosion resistance, and suitability for re-flow soldering.
The ROHM MCR50 series is a low‑ohmic thick‑film chip resistor offering high reliability and solder‑resistant electrodes. Features include a ruthenium‑oxide dielectric and ISO‑9001/ISO‑TS 16949 certification. Ratings cover power derating, voltage limits, and operating temperature ranges.
The datasheet also lists dimensional data, material composition, and packaging options such as reel‑taping compliant with EIAJ ET‑7200B. Legal notices and usage guidelines are provided to ensure proper application in electronic equipment.
| Rated Voltage | 2.18 V (9.1 Ω) |
|---|---|
| Operating Temperature | 55 °C to +155 °C |
| Nominal Resistance Range | 0.1 Ω to 0.13 Ω (E24 series) |
It can operate from 55 °C up to +155 °C.
